Norsat ku Band LNB 10.7 -11.8 Ghz

Norsat ku Band LNB 10.7 -11.8 Ghz

Brand Name : Norsat
Model Number : Norsat ku Band 1000H-2
Certification : CE
Place of Origin : korea
MOQ : 1
Price : Formal Quotation
Payment Terms : T/T
Packaging Details : Export fit
Contact Now
Typical Specifications
Noise Figure 0.8 dB typ
LO Stability ±10kHz, ±25 kHz
Phase Noise -70 dBc at 1 kHz -80 dBc at 10 kHz
-95 dBc at 100 kHz
Gain 60 dB typ., 55 dB min. @ full frequency band
Output P1dB +5 dBm min
DC Power +12V to +24V DC
Current 250 mA
Input (waterproof) WR-75 waveguide
Output(waterproof) F-connector (75 ohm) N (Optional) (50 ohm)
Dimensions 128 x 60 x 40 (L x W x H)
Weight 450 g
Operating Temperature -40 ~ +60˚C
Storage Temperature -40 ~ +80˚C
FREQUENCY BANDS AVAILABLE
Frequency Bands 1000HD-2 1000HF-2 1000HG-2
Input Frequency 10.7 ~ 11.8 GHz 11.7 ~ 12.75 GHz 12.2 ~ 12.7 GHz
LO Frequency 9.75 GHz 10.75 GHz 11.25 GHz
IF Frequency 950 ~ 2050 MHz 950 ~ 2000 MHz 950 ~ 1450 MHz

China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

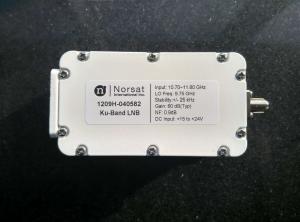

Norsat ku Band LNB 10.7 -11.8 Ghz Images
